Blower is also commonly known as Centrifugal Fans in industry. In a blower, the inlet pressure is low and is higher at the outlet.An axial fan is a fan in which the exhausted air is forced to move parallel to the shaft around which the blades rotate. Centrifugal fans draw air at right angles to the inlet of the fan and drive the air outward to the outlet by deflection and centrifugal force. We supply HIGH -PRESSURE BLOWERS for various industrial applications. CLICK For More Information
Perfermance
Company Information
Perfermance

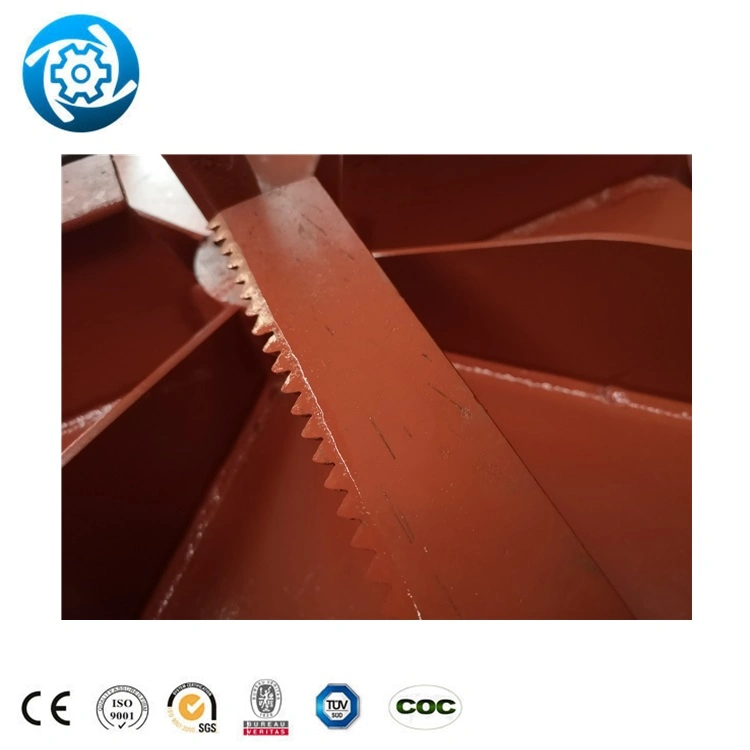

Shredding Fan | |||
| Performance | Pressure range | 3031---16205 | Pa |
| Air flow range | 8792---123090 | m3/h | |
| Impeller diameter | 710---1600 | mm | |
| Speed | 960---2900 | rpm | |
| Material | Draft fan case | Q235, Q345, stainless steel | Design as special |
| Draft fan shaft | 45# steel, Q304, SS304,SS316L | ||
| Draft fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---140°C | Dustiness | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components | System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. | ||
